OMS-LV43K280 Rack Module Low voltage ess
- Model
- OMS-LV43K280
Item specifics
- Standard
- 51.2V280AH
- Nominal Voltage
- 51.2V
- Nominal Capacity(KWH)
- 43.008
- Working Temperature
- 0℃~50℃ Charge -10℃~50℃ Disharge
- Transport or Storage Temperature Range
- -20℃~60℃
- Certification
- CE/IEC/UL/UN38.3/MSDS
Review
Description

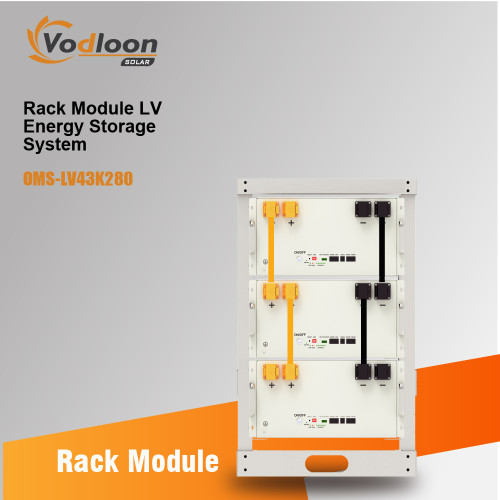

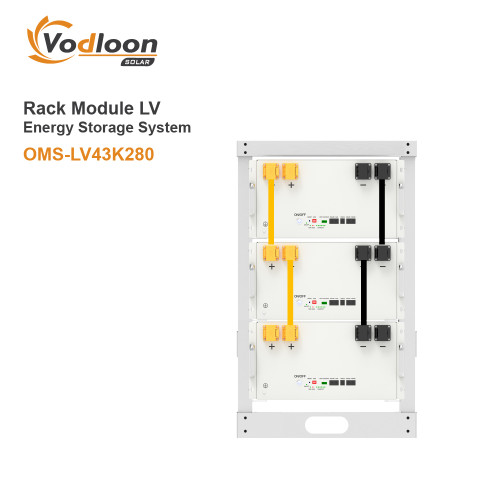

OMS-LV43K280 Rack Module Low voltage ESS
OMS-LV43K280
Rack Module Low voltage ESS
Battery modules: 51.2V 280Ah
Standard voltage: 51.2V
Cycle Life: >6000 cycles
Battery Parameters
MODEL | OMS-LV43K |
Model | 51.2V280AH*3 |
Nominal Voltage | 51.2V |
Dimension moudle(mm) | 483*790*244*3 |
Dimension RACK(mm) | 600*550*456 |
Weight(kg) | 405 |
SPECIFICATIONS | PARAMETER |
Nominal Voltage(v) | 51.2 |
Nominal Capacity(KWH) | 43.008 |
Discharge Cut-Off Voltage(V) | 40 |
Charge Cut-Off Voltage(V) | 56.8 |
Recoend Charge/Discharge Current(A) | 300 |
Max.Charge/Discharge Current(A) | 420 |
Counication | RS485/RS232/CAN |
Working Temperature | 0℃~50℃ Charge -10℃~50℃ Disharge |
Transport or Storage Temperature Range | -20℃~60℃ |
Certification | CE/IEC/UL/UN38.3/MSDS |
Design Life | 15years+ |
Cycle Life | (0.5C/0.5C-80%DOD)>6000 times |
Series Function | Support 16 units in Series |
Certification | UN38.3/MSDS/ROHS |
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
