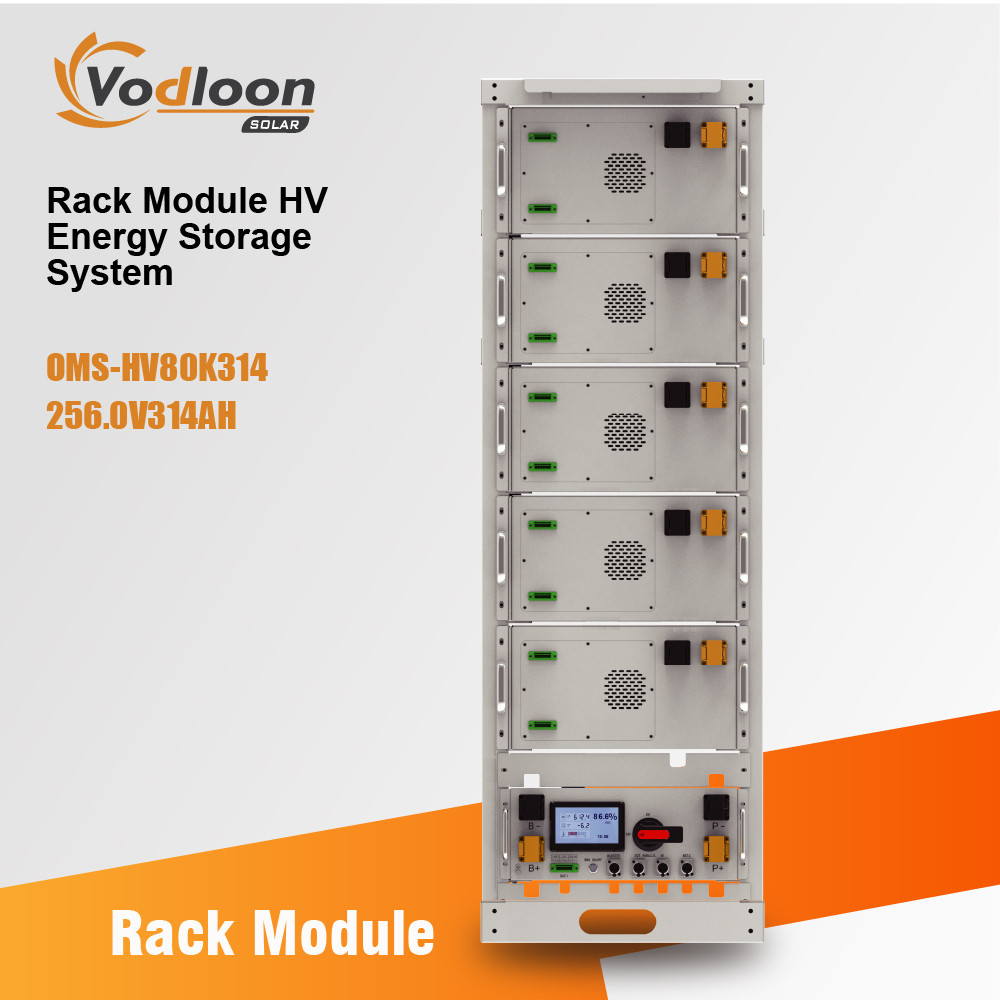

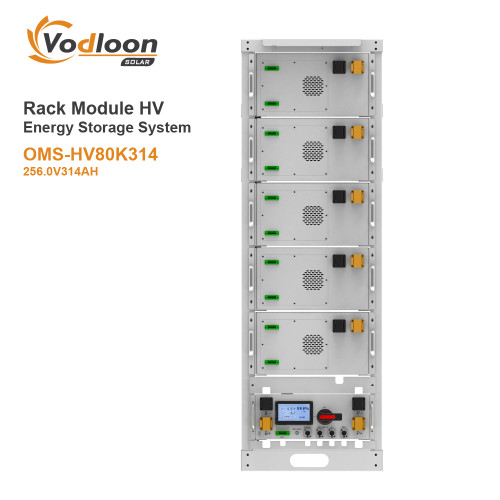

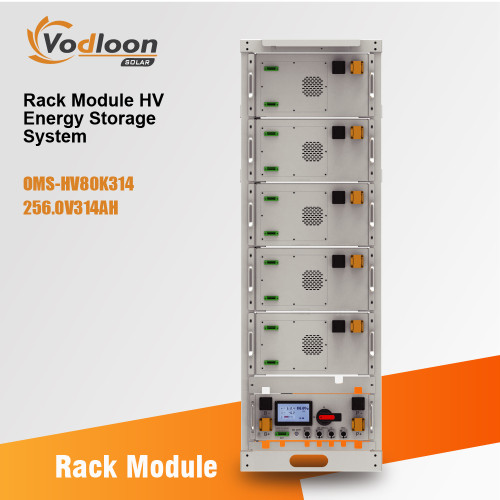

OMS-HV80K314 Rack storage lithium battery 256V314AH
- Model
- OMS-HV80K314
Item specifics
- 产品规格Model
- 256V314AH
- 额定电压Nominal Voltage
- 256V
- 额定电量Nominal Capacity(KWH)
- 80.4
- 工作温度 Working Temperature
- 0℃~50℃ Charge -10℃~50℃ Disharge
- 存储及运输温度Transport or Storage Temperature Range
- -20℃~60℃
- 产品认证 Certification
- CE/IEC/UL/UN38.3/MSDS
Review
Description
OMS-HV80K314 ENERGY STORAGE BESS 256V314AH
OMS-HV80K314
ENERGY STORAGE BESS
Number of battery modules:256V314AH
Standard voltage: 256V
Cycle Life: >6000 cycles
Battery Parameters
型 号MODEL | OMS-HV80K314 |
产品规格Model | 256V314AH |
额定电压Nominal Voltage | 256V |
额定容量Nominal Capacity | 314 |
模组尺寸Dimension moudle(mm) | 483*245*792*5 |
整机尺寸Dimension RACK(mm) | 550*780*1690 |
整机重量Weight(kg) | 660 |
规 格 S P E C I F I C A T I O N S | PARAMETER |
额定电量Nominal Capacity(KWH) | 80.4 |
放电截止电压Discharge Cut-Off Voltage(V) | 220 |
充电截止电压Charge Cut-Off Voltage(V) | 284 |
推荐工作电流Recoend Charge/Discharge Current(A) | 100 |
最大工作电流Max.Charge/Discharge Current(A) | 160 |
通讯方式 Counication | RS485/RS232/CAN |
工作温度 Working Temperature | 0℃~50℃ Charge -10℃~50℃ Disharge |
存储及运输温度Transport or Storage Temperature Range | -20℃~60℃ |
产品认证 Certification | CE/IEC/UL/UN38.3/MSDS |
设计寿命 Design Life | 15years+ |
产品循环寿命Cycle Life | (0.5C/0.5C-80%DOD)>6000 times |
串联组数 Series Function | Support 16 units in Series |
证 书Certification | UN38.3/MSDS/ROHS |
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
