OMS-200K ENERGY STORAGE BESS
- Model
- OMS-200K
Item specifics
- Model
- 768V314AH
- Nominal Voltage
- 768V
- Nominal Capacity(KWH)
- 241.2
- Working Temperature
- 0℃~50℃ Charge -10℃~50℃ Disharge
- Transport or Storage Temperature Range
- -20℃~60℃
- Certification
- CE/IEC/UL/UN38.3/MSDS
Review
Description

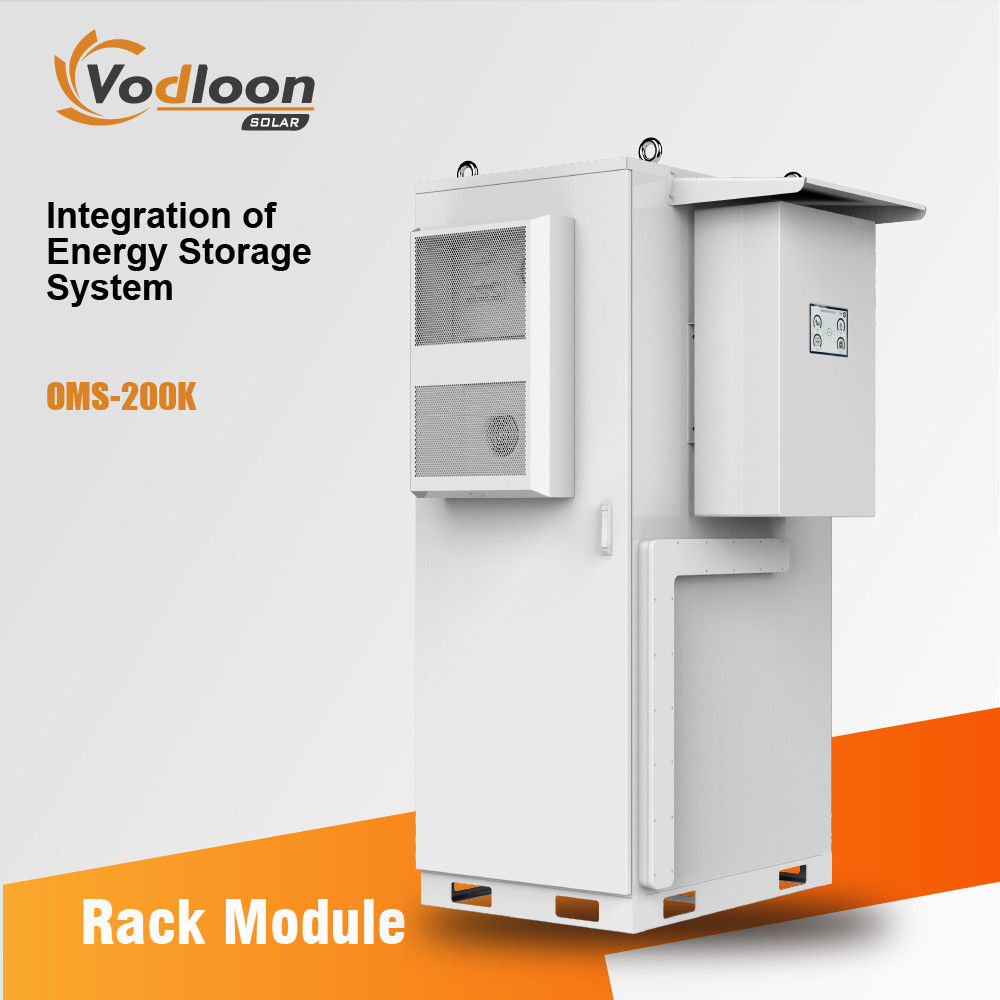

OMS-200K ENERGY STORAGE BESS
OMS-200K
ENERGY STORAGE BESS
Number of battery modules:716.8V280AH
Standard voltage:716.8V
Cycle Life: >6000 cycles
Battery Parameters
MODEL | OMS-214K314 |
Model | 716.8V280AH |
Nominal Voltage | 716.8V |
Nominal Capacity | 280AH |
Cabinet Size(mm) | 1626*1245*2175 |
Weight(kg) | 2200 |
Charge/discharge power max | 140A |
SPECIFICATIONS | PARAMETER |
Nominal Capacity(KWH) | 200 |
Recoend Charge/Discharge Current(A) | 100 |
Max.Charge/Discharge Current(A) | 140 |
Counication | RS485/CAN |
Working Temperature | 0℃ Charge -10℃~50℃ Disharge |
Transport or Storage Temperature Range | -20℃~60℃ |
Certification | CE/IEC/UL/UN38.3/MSDS |
Design Life | 10years+ |
Cycle Life | (0.5C/0.5C-80%DOD)>6000 times |
Cooling method | air-cooled |
Protection class | IP55 |
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
