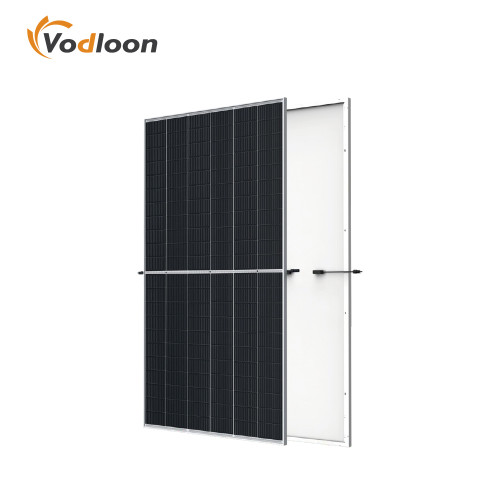

VDL-M21-132 660W 665W 670W 675W PERC Half-Cell Solar Module Mono Solar Panel
- Model
- VDL-M21-132 660-675W
Item specifics
- Cell Type [mm]
- MonoCells 132 210±1.5x105±1.5mm
- Dimensions of Module / Weight
- 2384x1303x30mm /34.0kg
- Glass
- High Transparency Solar Glass 3.2mm
- Backsheet
- White
- Frame
- Anodized Aluminum Alloy & Custom Color Accepted
- Cable /Connector
- 4.0mm²,300mm /MC4 Compatible
- Wind/ Snow Load
- 2400Pa/5400Pa
- Certificate
- CE, ISO9001, GS, RoHS，IEC, UKCA
Review
Description
VDL-M21-132 660-675W PERC Half-Cell Module Mono Solar Panel
VDL-M21-132
660-675W
210±1.5x105±1.5mm
Cells 144
Monocrystalline
PERC Half-Cell Module
Max Power Out: 675W
Max Efficiency: 21.73%
Power Tolerance: 0~+5W
Electrical Specification
Module Type | VDL-M21/132660 | VDL-M21/132665 | VDL-M21/132670 | VDL-M21/132675 |
Testing Condition | STC | STC | STC | STC |
Maximum Power(Pmax)[W] | 660 | 665 | 670 | 675 |
Maximum Power Voltage(Vmp)[V] | 37.8 | 38 | 38.2 | 38.4 |
Maximum Power Current(Imp)[A] | 17.46 | 17.5 | 17.54 | 17.58 |
Open Circuit Voltage (Voc)[V] | 45.7 | 45.9 | 46.1 | 46.3 |
Short Circuit Current(Isc)[A] | 18.52 | 18.56 | 18.59 | 18.63 |
Module Efficiency[%] | 21.25 | 21.41 | 21.57 | 21.73 |
Cell Type [mm] | Mono 210±1.5×105±1.5,132 Cells | Mono 210±1.5×105±1.5,132 Cells | Mono 210±1.5×105±1.5,132 Cells | Mono 210±1.5×105±1.5,132 Cells |
Operational Temperature [°C] | -40~+85℃ | -40~+85℃ | -40~+85℃ | -40~+85℃ |
Maximum System Voltage | 1500VDC | 1500VDC | 1500VDC | 1500VDC |
Max Series Fuse Rating | 30A | 30A | 30A | 30A |
Dimensions of Module | 2384×1303×30mm | 2384×1303×30mm | 2384×1303×30mm | 2384×1303×30mm |
Weight | 34.0kg | 34.0kg | 34.0kg | 34.0kg |
Advantage
 | SMBB TechnologyBetter light trapping and current collection to improve module power output and reliability. |  | Reduced Hot Spot LossOptimized electrical design and lower operating current for reduced hot pot loss and better temperature oefficien. |
 | PID ResistanceExcellent Anti-PID performance guarantee via optimized mass-production process and materials control. |  | Enhanced Mechanical LoadCertified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). |
 | Durability Against Extreme Environmental ConditionsHigh salt mist and ammonia resistance. |  |
High Energy Generation, Low LCOELow Pmax temp coefficient increases energy production |
Structural Parameter
Dimensions of Module | 2384x1303x30mm |
Weight | 34.0kg |
Packing | 37PCS/Pallet, 666PCS/40HQ |
Glass | High Transparency Solar Glass 3.2mm |
Backsheet | White |
Frame | Anodized Aluminum Alloy & Custom Color Accepted |
J-Box | IP68 Rated |
Cable | 4.0mm2,300mm |
Bypass Diodes | 3PCS |
Wind/ Snow Load | 2400Pa/5400Pa |
Connector | MC4 Compatible |
Curve Diagram
| Nominal Operating Cell Temperature | 45±2℃ |
| Temperature Coefficient of Isc | +0.0%/℃ |
| Temperature Coefficient of Voc | -0.25%/℃ |
| Temperature Coefficient of Pmax | -0.35%/℃ |
