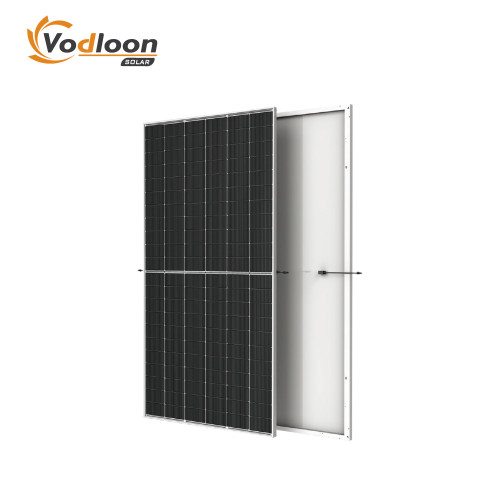

VDL-M21-120 615W 620W 625W 630W N-Type Half-Cell Solar Module Mono Solar Panel
- Model
- VDL-M21-120 615-630W
Item specifics
- Cell Type [mm]
- MonoCells 132 182±1.5x105±1.5mm
- Dimensions of Module / Weight
- 2382x1134x30mm /28.5kg
- Glass
- High Transparency Solar Glass 3.2mm
- Backsheet
- White
- Frame
- Anodized Aluminum Alloy & Custom Color Accepted
- Cable /Connector
- 4.0mm²,300mm /MC4 Compatible
- Wind/ Snow Load
- 2400Pa/5400Pa
- Certificate
- CE, ISO9001, GS, RoHS，IEC, UKCA
Review
Description
VDL-M21-120 615-630W N-Type Half-Cell Module Mono Solar Panel
VDL-M21-120
615-630W
182±1.5x105±1.5mm
Cells 144
Monocrystalline
N Type Half-Cell Module
Max Power Out: 630W
Max Efficiency: 23.2%
Power Tolerance: 0~+5W
Electrical Specification
Module Type | VDL-M21/120615 | VDL-M21/120620 | VDL-M21/120625 | VDL-M21/120630 |
Testing Condition | STC | STC | STC | STC |
Maximum Power(Pmax)[W] | 615 | 620 | 625 | 630 |
Maximum Power Voltage(Vmp)[V] | 40.98 | 41.22 | 41.45 | 41.68 |
Maximum Power Current(Imp)[A] | 14.98 | 15.03 | 15.08 | 15.12 |
Open Circuit Voltage (Voc)[V] | 49.3 | 49.6 | 49.9 | 50.2 |
Short Circuit Current(Isc)[A] | 15.89 | 15.92 | 15.95 | 15.98 |
Module Efficiency[%] | 22.7 | 22.95 | 23.14 | 23.32 |
Cell Type [mm] | Mono 182±1.5×105±1.5,132 Cells | Mono 182±1.5×105±1.5,132 Cells | Mono 182±1.5×105±1.5,132 Cells | Mono 182±1.5×105±1.5,132 Cells |
Operational Temperature [°C] | -40~+85℃ | -40~+85℃ | -40~+85℃ | -40~+85℃ |
Maximum System Voltage | 1500VDC | 1500VDC | 1500VDC | 1500VDC |
Max Series Fuse Rating | 25A | 25A | 25A | 25A |
Dimensions of Module | 2382×1134×30mm | 2382×1134×30mm | 2382×1134×30mm | 2382×1134×30mm |
Weight | 28.5kg | 28.5kg | 28.5kg | 28.5kg |
Advantage
 | SMBB TechnologyBetter light trapping and current collection to improve module power output and reliability. |  | Reduced Hot Spot LossOptimized electrical design and lower operating current for reduced hot pot loss and better temperature oefficien. |
 | PID ResistanceExcellent Anti-PID performance guarantee via optimized mass-production process and materials control. |  | Enhanced Mechanical LoadCertified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). |
 | Durability Against Extreme Environmental ConditionsHigh salt mist and ammonia resistance. |  |
High Energy Generation, Low LCOELow Pmax temp coefficient increases energy production |

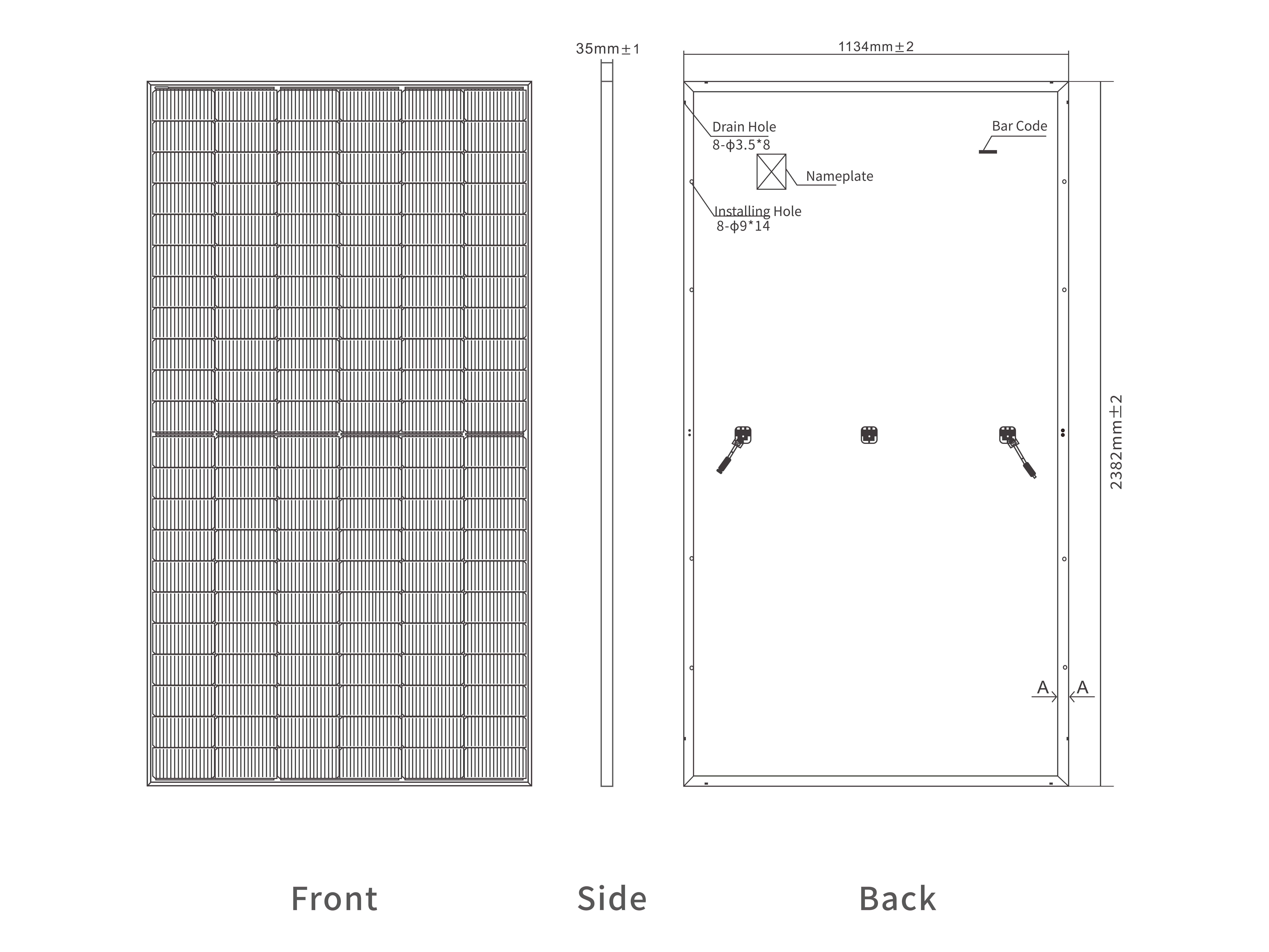

Structural Parameter
Dimensions of Module | 2382x1134x30mm |
Weight | 28.5kg |
Packing | 37PCS/Pallet, 740PCS/40HQ |
Glass | High Transparency Solar Glass 3.2mm |
Backsheet | White |
Frame | Anodized Aluminum Alloy & Custom Color Accepted |
J-Box | IP68 Rated |
Cable | 4.0mm2,300mm |
Bypass Diodes | 3PCS |
Wind/ Snow Load | 2400Pa/5400Pa |
Connector | MC4 Compatible |
Curve Diagram
| Nominal Operating Cell Temperature | 45±2℃ |
| Temperature Coefficient of Isc | +0.05%/℃ |
| Temperature Coefficient of Voc | -0.23%/℃ |
| Temperature Coefficient of Pmax | -0.30%/℃ |
