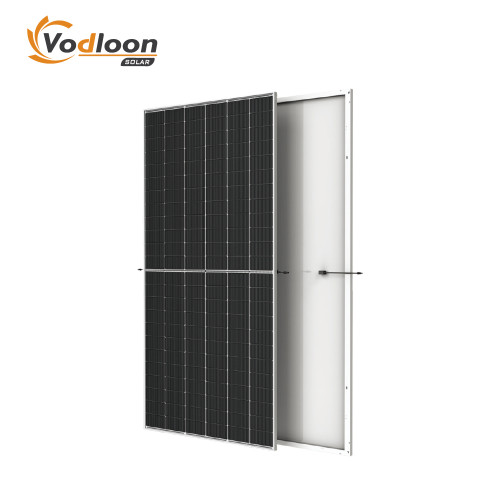

VDL-M18-144 580W 585W 590W 595W N-Type Half-Cell Solar Module Mono Solar Panel
- Model
- VDL-M18/144 545-560W
Item specifics
- Cell Type [mm]
- Mono182±1.5x91±1.5mmCells 144
- Dimensions of Module / Weight
- 2278x1134x30mm /26.5kg
- Glass
- High Transparency Solar Glass 3.2mm
- Backsheet
- White
- Frame
- Anodized Aluminum Alloy & Custom Color Accepted
- Cable /Connector
- 4.0mm²,300mm /MC4 Compatible
- Wind/ Snow Load
- 2400Pa/5400Pa
- Certificate
- CE, ISO9001, GS, RoHS，IEC, UKCA
Review
Description
VDL-M18-144 580-595W PERC Half-Cell Solar Module
VDL-M18-144
580-595W
166±1.5 x 83±1.5mm
Cells 144
Monocrystalline
PERC Half-Cell Module
Max Power Out: 595W
Max Efficiency: 23.03%
Power Tolerance: 0~+5W
Electrical Specification
Module Type | VDL-M18/144580 | VDL-M18/144585 | VDL-M18/144590 | VDL-M18/144595 |
Testing Condition | STC | STC | STC | STC |
Maximum Power(Pmax)[W] | 580 | 585 | 590 | 595 |
Maximum Power Voltage(Vmp)[V] | 42.91 | 43.07 | 43.23 | 43.39 |
Maximum Power Current(Imp)[A] | 13.52 | 13.58 | 13.65 | 13.71 |
Open Circuit Voltage(Voc)[V] | 50.8 | 50.95 | 51.1 | 51.25 |
Short Circuit Current(Isc)[A] | 14.55 | 14.62 | 14.7 | 14.77 |
Module Efficiency [%] | 22.45 | 22.65 | 22.84 | 23.03 |
Cell Type [mm] | Mono 182±1.5×91±1.5,144 Cells | Mono 182±1.5×91±1.5,144 Cells | Mono 182±1.5×91±1.5,144 Cells | Mono 182±1.5×91±1.5,144 Cells |
Operational Temperature [℃] | -40~+85℃ | -40~+85℃ | -40~+85℃ | -40~+85℃ |
Maximum System Voltage | 1500VDC | 1500VDC | 1500VDC | 1500VDC |
Max Series Fuse Rating | 25A | 25A | 25A | 25A |
Dimensions of Module | 2278×1134×30mm | 2278×1134×30mm | 2278×1134×30mm | 2278×1134×30mm |
Weight | 26.5kg | 26.5kg | 26.5kg | 26.5kg |
Advantage
 | SMBB TechnologyBetter light trapping and current collection to improve module power output and reliability. |  | Reduced Hot Spot LossOptimized electrical design and lower operating current for reduced hot pot loss and better temperature oefficien. |
 | PID ResistanceExcellent Anti-PID performance guarantee via optimized mass-production process and materials control. |  | Enhanced Mechanical LoadCertified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). |
 | Durability Against Extreme Environmental ConditionsHigh salt mist and ammonia resistance. |  |
High Energy Generation, Low LCOELow Pmax temp coefficient increases energy production |

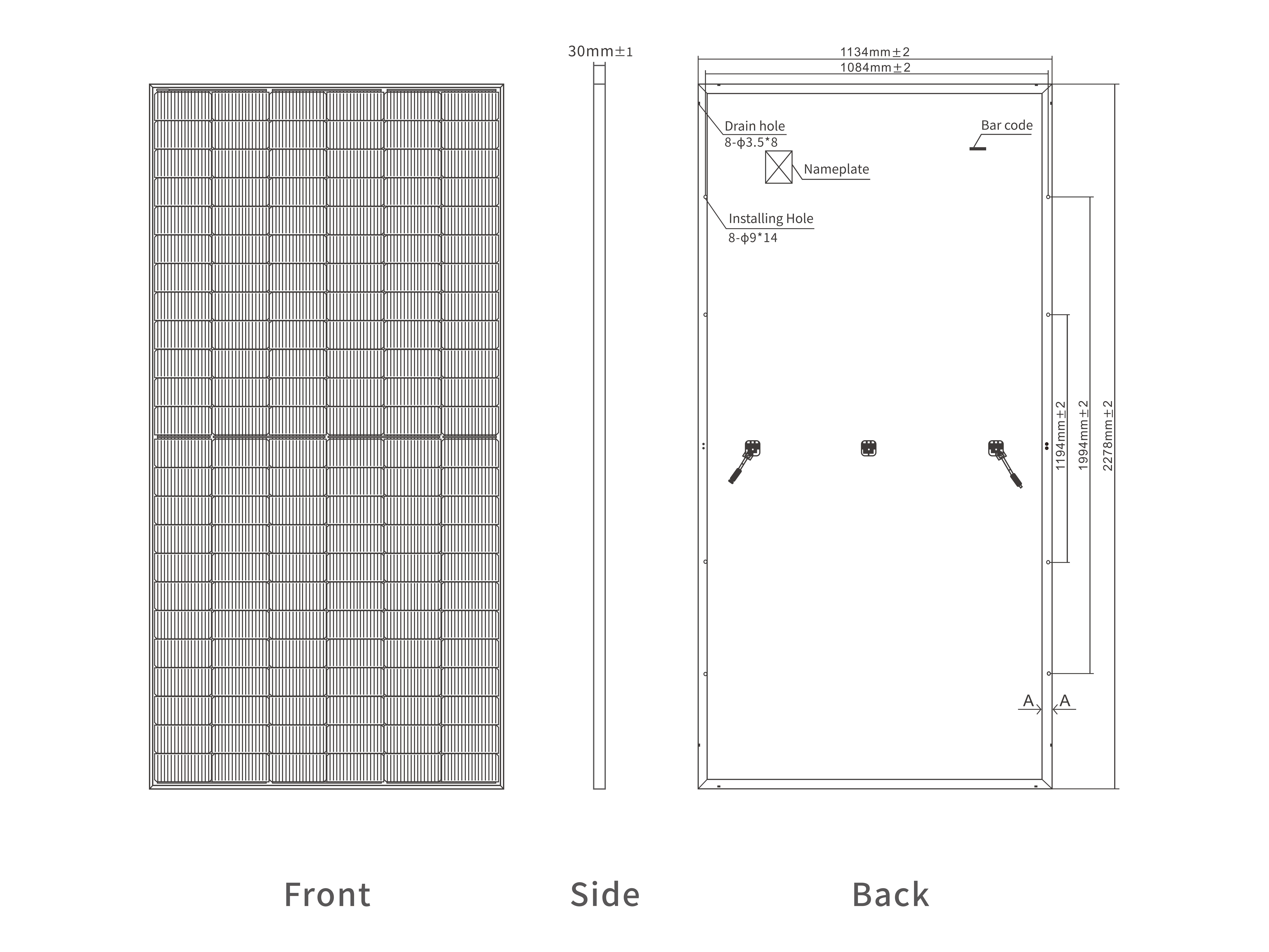

Structural Parameter
Dimensions of Module | 2278×1134×30mm |
Weight | 26.5kg |
Packing | 37PCS/Pallet, 740PCS/40HQ |
Glass | High Transparency Solar Glass 3.2mm |
Backsheet | White |
Frame | Anodized Aluminum Alloy & Custom Color Accepted |
J-Box | IP68 Rated |
Cable | 4.0mm²,300mm |
Bypass Diodes | 3PCS |
Wind/ Snow Load | 2400Pa/5400Pa |
Connector | MC4 Compatible |
Curve Diagram
| Nominal Operating Cell Temperature | 45±2℃ |
| Temperature Coefficient of Isc | +0.05%/℃ |
| Temperature Coefficient of Voc | -0.23%/℃ |
| Temperature Coefficient of Pmax | -0.39%/℃ |
